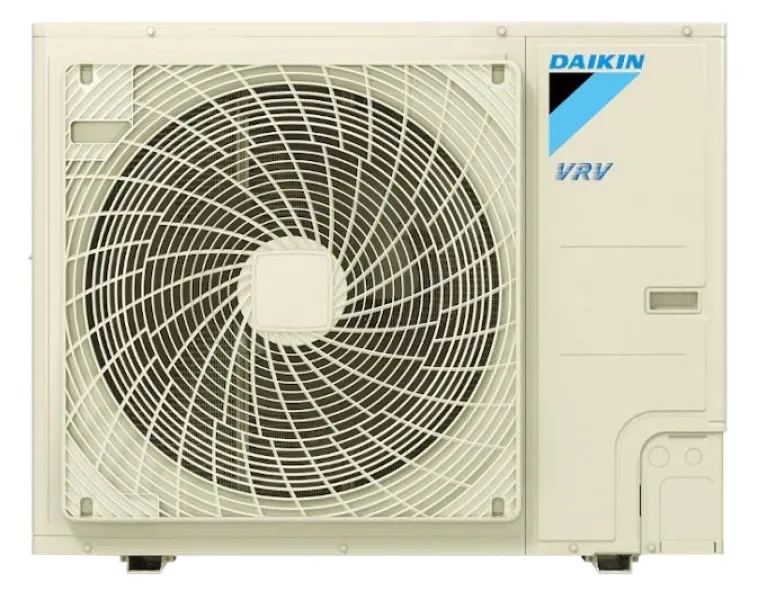

VRV S High Seasonal Efficiency

  • Available in

    Reverse Cycle (Heating & Cooling)

  • Capacities
    (Rated Heating:) 3.4kW, 4.5kW, 5.8kW (Rated Cooling:) 2.4kW, 3.4kW, 5.0kW
  • Refrigerant
    R32
From apartments and accommodations to cafes and restaurants, the VRV S High Seasonal Efficiency provides personalised comfort for your building occupants. Available in 3 models in a unified single fan casing design – 870(H) x 1,100(W) x 460(D) across the range with capacities from 11.2 to 16.0kW.

Key features include Automatic Refrigerant Charge (ARC) function, max piping runs of up to 120m*, VRT Smart technology and refrigerant cooled PCB with operation range up to 52°C ambient.

*ARC must be used for pipe runs >90m
Download Brochure
Operation Manual

Minimum Energy Performance Standards

All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.

Features

  • High Seasonal Efficiency
    The VRT Smart Control enables improvements on efficiency during low load operation, achieving high seasonal efficiency.

  • VRT Smart function is available in the VRV S High Seasonal Efficiency Series for the first time. Coordination between indoor and outdoor units minimizes energy consumption by optimising capacity to meet actual operation load.
  • Long Pipe Length
    Increased actual piping length up to 120 m. Actual piping length increased by 20% allows for various installation!
  • Night Time Quiet Operation
    The night time quiet operation function automatically suppresses the night time operating sound by reducing operation capacity to maintain the quiet environment of the neighborhood. Three selectable modes are available depending on the required level. This function is suitable for use in residential areas.
  • New Swing Compressor
    High efficiency, high capacity DC inverter swing compressor offers higher performance compared to that of conventional scroll compressors.
  • Automatic Refrigerant Charge Function
    Contribute to optimised operation efficiency, higher quality and easier installation.

Controller Features

  • Backlit Display Clear large, easy to read text with a intuitive interface.
  • Centralised Control Controls up to 16 groups of indoor units.
  • Individualised Scheduling On/Off, temperature settings and scheduling can be controlled for each individual indoor unit. One
  • Touch Control One touch button to turn all units on or off.
  • Convenient Group Control Each group has a dedicated button for convenience.
  • Outside Temperature Display The outside temperature can be displayed on the controller.
