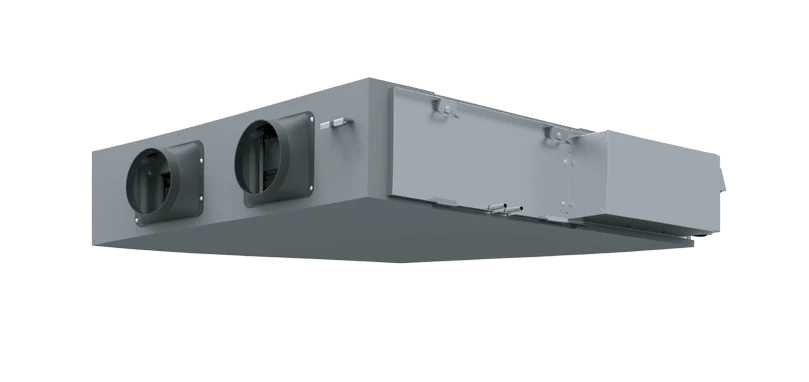

VAMS-V3A (Sensible Heat Reclaim Ventilator)

Compact Design Reduce the Unit Height Size from 278mm (HVE) to 220 mm (Casing Size with insulation). DC Motor Adopted single inlet centrifugal fan integrated with DC motor to achieve AUS J5.4 Fan efficiency and low height casing design. Heat Exchanger Adopted aluminum sensible heat exchanger able to suit customer requirement to avoid cross contaminants from RA(toilet) to OA and maintain NCCJ5.3 sensible heat efficiency min 60% and reduce unit size. Auto-Ventilation Mode Changeover Switching Automatically switches the ventilation mode (Sensible Heat Exchange Mode/Bypass Mode) according to the operating status of the air conditioner. When the cooling operation is required in winter, use of heat recovery ventilation is not efficient because the outdoor air temperature is normally lower than that of the indoor. Thus, the proper use of ventilation mode enhances the heating / cooling efficiency. Optional Accessories Stylish Remote Controller (Zigbee sensor – CO2,temperature, window/door, humidity) Optional Stylish Remote Controller BRC1H63W / BRC1H63K. Through Zigbee communication, the sensor (temperature, window/door, CO2 concentration & humidity) able to connect to R/C
